Description

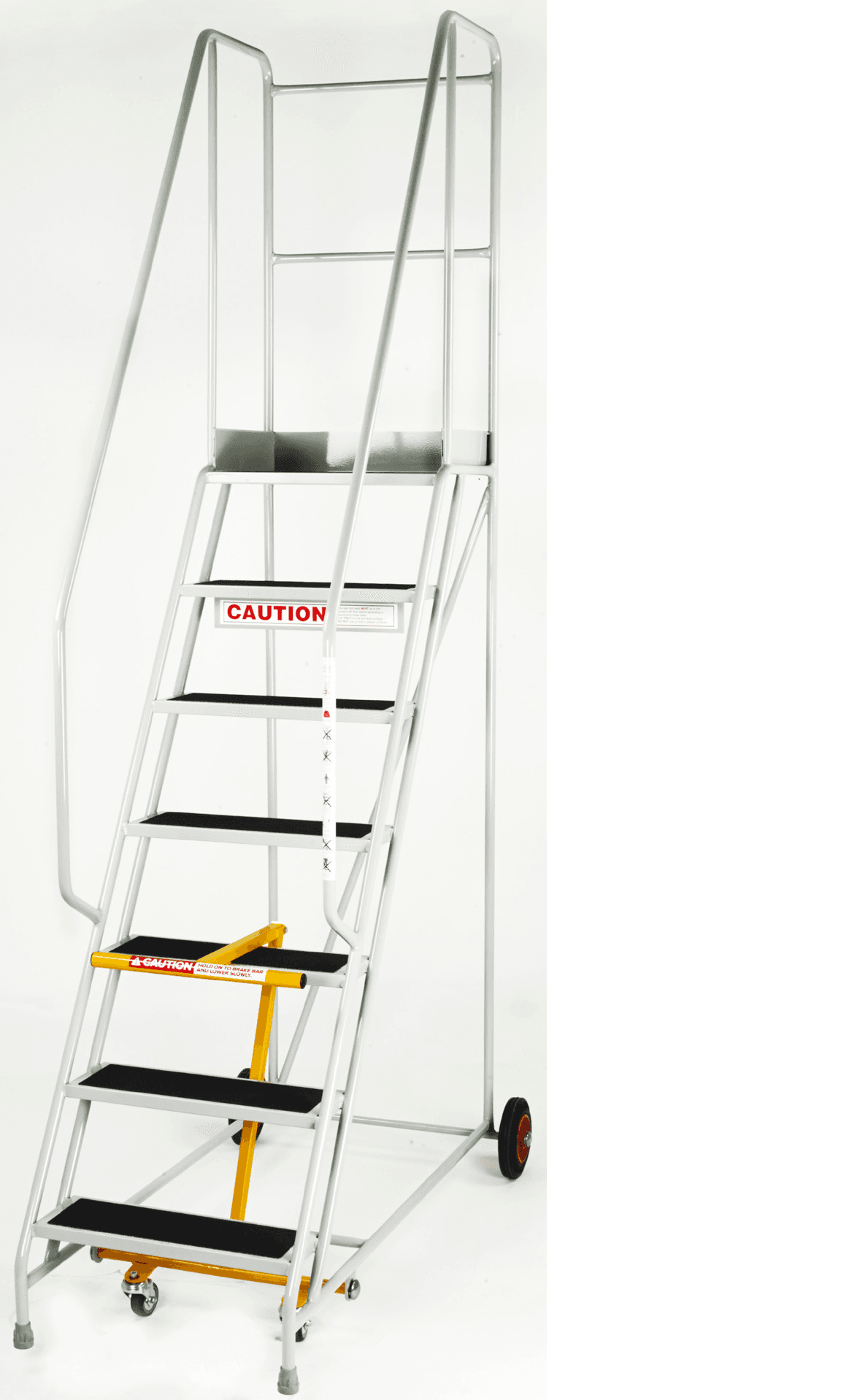

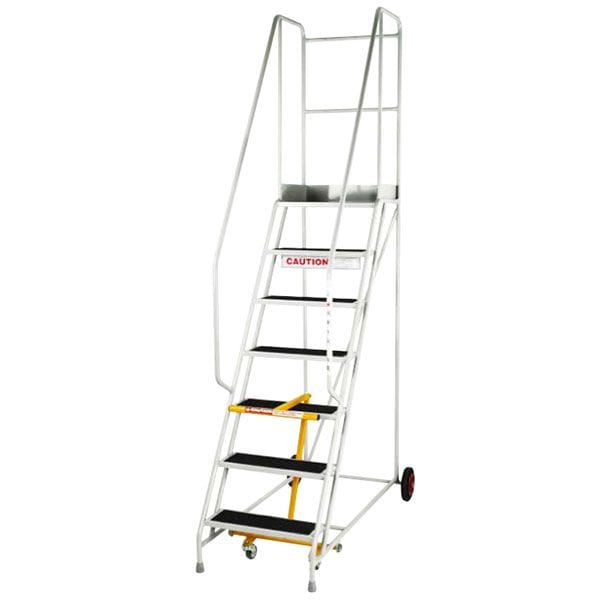

Welded tubular construction, fitted with anti-ascent pull through bar which locks in mobile position onto tread via hook mechanism. Moves fully through tread when in static postion allowing castors to retract. Grey non-marking feet to front legs. Mounted on 2 x 200mm
fixed solid rubber tyred wheels and 2 x 75mm grey non-marking swivel castors (castors retreat with lever) choice of anti-slip or punched treads.
Finish: light grey epoxy/yellow anti-ascent bar.
- Fitted with anti-ascent pull through bar which locks in mobile position onto tread via hook mechanism
- Moves fully through tread when in static position allowing castors to retract
- Grey non-marking feet to front legs
- Choice ofanti-slip or punched treads
- Light grey epoxy finish / yellow anti-ascent bar
Platform size: 560 x 400mm Tread width: 560mm
| Treads (inc platform) | 4 | 5 | 6 | 7 | 8 | 9 |
|---|---|---|---|---|---|---|
| Average working height | 2500 | 2750 | 3000 | 3250 | 3500 | 3750 |
| Platform height mm | 1000 | 1250 | 1500 | 1750 | 2000 | 2250 |
| Overall dimensions (H x W x D) mm | 1960 x 850 x 1015 | 2210 x 850 x 1165 | 2460 x 850 x 1325 | 2710 x 850 x 1455 | 2960 x 850 x 1610 | 3210 x 850 x 1765 |
| Anti slip treads | ||||||
| Order Ref | S804 | S805 | S806 | S807 | S808 | S809 |
| Punched treads | ||||||
| Order Ref | S814 | S814 | S816 | S817 | S818 | S819 |
